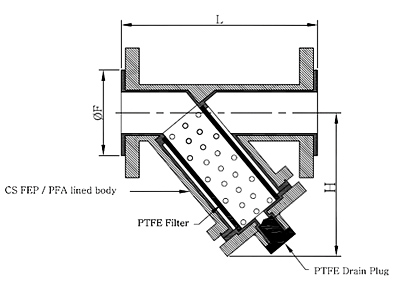

PFA FEP lined Y type strainer





Nominal size
ØF
ØH
L
Inch
mm
mm
mm
mm
1"
25
48
130
160
1.1/2"
40
69
150
200
2"
50
88
170
230
3"
80
118
225
310




Strainer body: ASTM A 216 Grade WCB

Flange: IS 2062 Grade B. ANSI B16.5 ASA150 # for drilled holes

Standard : Two fixed flanges

Lining : FEP in compliance with ASTM D 2116

PFA in compliance with ASTM D 3307, natural

Filter: Pure PTFE in compliance with ASTM D 1457, white in colour

Lining thickness: 3 to 5 mm, exceeds the relevant ASTM F-1545 standard specs.

Operating temperature: FEP -29 to 200 deg. C, PFA -29 to 260 deg. C

Operating pressure: Vaccume to 6 kg / cm. sq, Hydrostatic pressure test 10 kg / cm. sq

Air leak test : 3 kg / cm. sq.

Spark test: 10 KV
