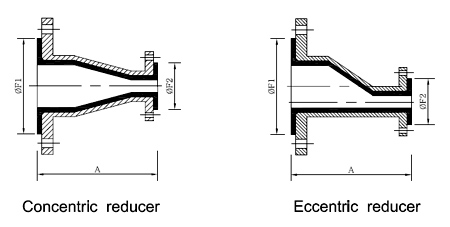

PTFE Lined Conc. & Eccn. Reducer






Nominal size
ØF1
ØF2
A
Inch
mm
mm
mm
1 1/2"X1"
40X25
69
48
114
2"X1"
50X25
88
48
127
2"X1 1/2"
50X40
88
69
127
3"X1"
80X25
118
48
152
3"X1 1/2"
80X40
118
69
152
3"X2"
80X50
118
88
152
4"X1"
100X25
151
48
178
4"X1 1/2"
100X40
151
69
178
4"X2"
100X50
151
88
178
4"X3"
100X80
151
118
178
6"X1 1/2"
150X40
204
69
229
6"X2"
150X50
204
88
229
6"X3"
150X80
204
118
229
6"X4"
150X100
204
151
229
8"X2"
200X50
256
88
279
8"X3"
200X80
256
118
279
8"X4"
200X100
256
151
279
8"X6"
200X150
256
204
279




Reducer : According to schedule 40

Flange : IS 2062 Grade B. ANSI B16 ASA150 # for drilled holes

Standard : Two fixed flanges.

Lining : Pure PTFE in compliance with ASTM D 1457, white in colour

Llnlng thickness : 3 to 7 mm exceeds the relevant ASTM F -1545 standard spec

Operating temperature : -29 to 260 deg. C

Operating pressure : Vaccume to 6 kg / cm. sq.

Hydrostatic pressure test : 10 kg / cm. sq

Air leak test : 3 kg / cm. sq.

Spark test : 10 KV
