PTFE lined elbow 90 deg.& 45 deg.

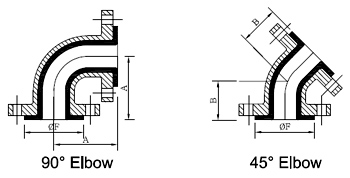

90 Degree Elbow

Nominal size
ØF
A
B
Liner thickness
Inch
mm
mm
mm
mm
mm
1"
25
48
89
45
3.5
1.1/2"
40
69
102
57
4
2"
50
88
115
63
4.5
2.1/2"
65
105
127
70
5
3"
80
118
140
76
5
4"
100
151
165
102
5
6"
150
204
203
127
7
8"
200
256
229
140
7
10"
250
312
-
165
7
45 Degree Elbow




Elbow: ASTM A 106 Grade B schedule 40, in compliance with ANSI B 16.9

Steel pipe: According to schedule 40

Flange: IS 2062 Grade B. ANSI B16.5 ASA150 # for drilled holes

Standard: Two fixed flanges; one fixed flange and one loose flange on request.

Lining: Pure PTFE in compliance with ASTM D 1457, white in colour

Lining thickness: 3 to 7 mm, exceeds the relevant ASTM F-1545 standard specs.

Operating temperature: -29 to 260 deg. C

Operating pressure: Vaccume to 6 kg / cm. sq.

Hydrostatic pressure test: 10 kg / cm. sq

Air leak test: 3 kg / cm. sq.

Park test: 10 KV
