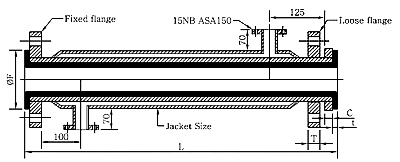

PTFE Lined Jacketed Pipe











Nominal size
Jacket size
ØF
C
Flange Thickness
Liner thickness t, mm
L (Min)
L (Max)
Inch
mm
mm
mm
mm
T mm
Standard wall
Heavy wall
1
25
50
48
8
14.5
3
300
3000
1.1/2"
40
65
69
8
14.5
3
300
3000
2
50
80
88
10
16.5
3.5
500
3000
2.1/2"
65
100
105
10
16.5
4.5
500
3000
3
80
125
118
12
18.5
4.5
500
3000
4
100
150
151
12
18.5
4.5
500
3000
6
150
200
204
14
23
5
8
500
3000



Note : Minimum liner face thickness shall be 80% of minimum liner wall thickness



Pipe: ASTM A 106 Grade B, in compliance with ANSI B 36.10

Jacket Pipe: IS 1239 ERW

Steel pipe: According to schedule 40

Flange: IS 2062 Grade B, ANSI B16.5 ASA150 # for drilled holes

Standard: One loose flange, one fixed flange; two fixed flanges or two loose flanges on request.

Standard lengths: 300/400/500/1000/1500/2000/3000 mm

Lining: Pure PTFE in compliance with ASTM D 1457,white in colour

Lining thickness: 3 to 8 mm, exceeds the relevant ASTM F-1545 standard specs.

Operating temperature: -29 to 260 deg. C

Operating pressure: Vaccume to 6 kg / cm. sq.

Hydrostatic pressure test: 10 kg / cm. sq

Air leak test: 3 kg / cm. sq.

Spark test: 10 KV
