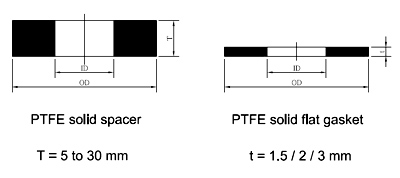

PTFE solid spacer and gaskets






Nominal size
PTFE spacer
PTFE gasket
Inch
mm
OD
ID
OD
ID
1"
25
65
24
65
24
1.1/2"
40
85
38
85
38
2"
50
105
50
105
50
2.1/2"
65
124
58
124
58
3"
80
135
75
135
75
4"
100
172
102
172
102
6"
150
220
150
220
150
8"
200
278
200
278
200
10"
250
335
250
335
250
12"
300
410
300
410
300




Raw material: Pure PTFE in compliance with ASTM D 1457, white in colour

Operating temperature: -29 to 260 deg. C

Operating pressure: Vaccume to 6 kg / cm. sq.

Spark test: 10 KV
