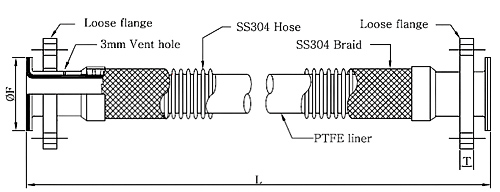

SS304 PTFE lined flexible hose







Nominal size
OF
L (Min)
L (max)
Flange Thickness
Inch
mm
mm
mm
mm
T mm
1"
25
48
500
3000
12
1.1/2"
40
69
500
3000
12
2"
50
88
500
3000
12



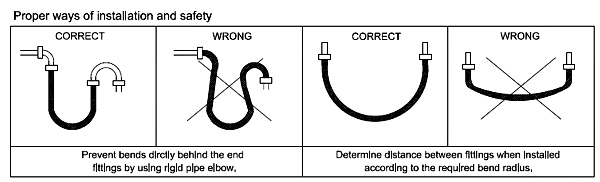

Note : Minimum liner face thickness shall be 80% of minimum liner wall thickness







Hose: SS304 / SS316 as per B.S.6501

Stubend & Flange: SS 304 / SS 31 6, ASA150 # for drilled holes

Standard: Two loose flanges with stub end.

Length Tolerance: Up to 1000mm + 25mm, 2000 To 3000 + 75mm

Lining: PTFE in compliance with ASTM D 1457, white in colour

Lining thickness: 3 to 3.5 mm, exceeds the relevant ASTM F-1545 standard specs. Operating temperature: PTFE -29 to 260 deg. C

Operating pressure: Vaccume to 6 kg / cm. sq.

Hydrostatic pressure test: 10 kg / cm. sq

Air leak test: 3 kg / cm. sq.

Spark test: 10 KV
